Description
Product Overview

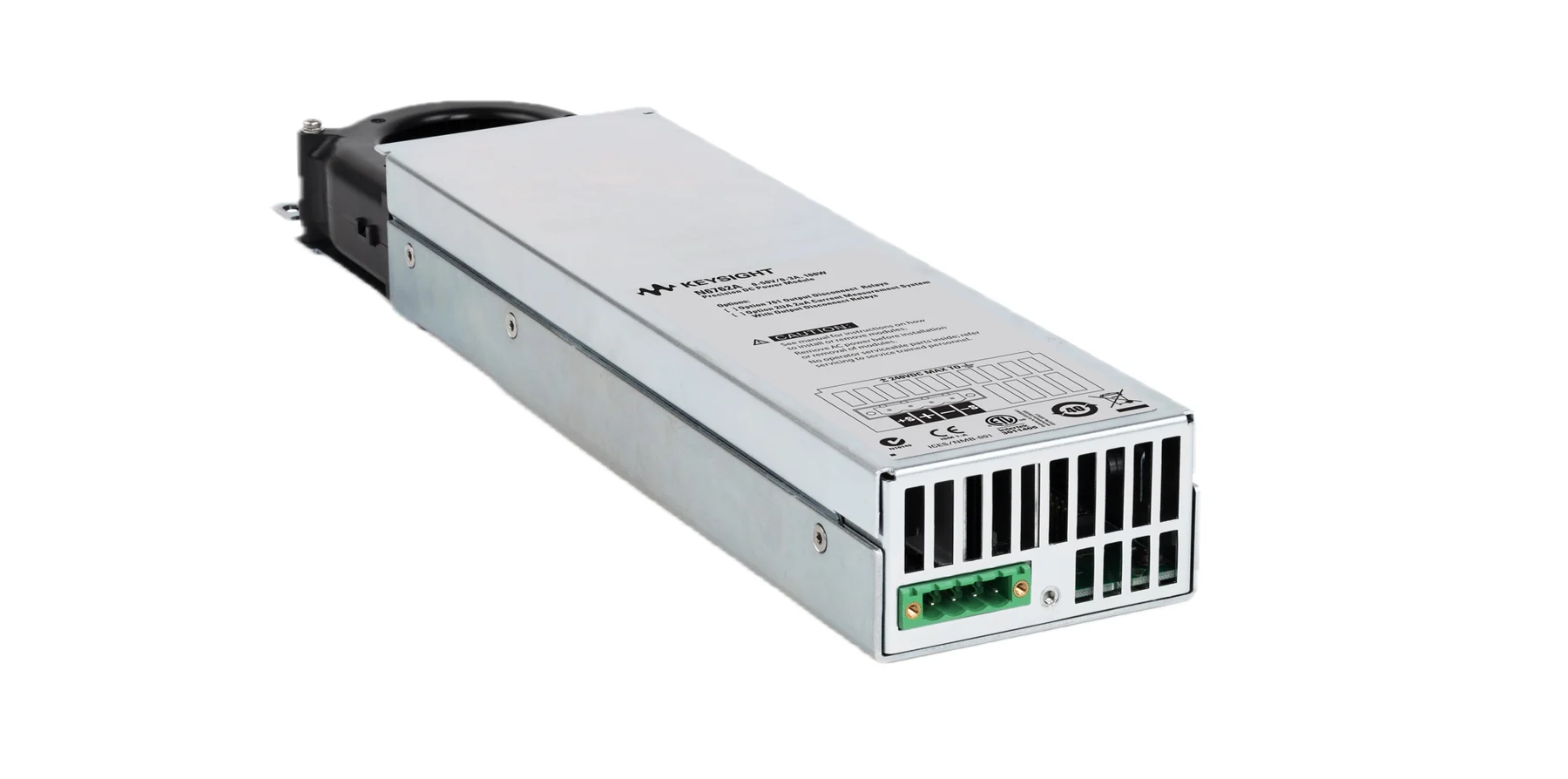

The verified specification set for the Keysight N6756A covers module type: High-performance autoranging, output voltage: 60 V, output current: 17 A, output power: 500 W, and mainframe slot occupancy: 2. As a high-performance auto-ranging DC power module, it is suited to multi-channel power system integration, with related use in automated device validation and modular laboratory and production testing. It is part of the N6700 Modular Power System. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Module type: High-performance autoranging.
- Output voltage: 60 V.
- Output current: 17 A.
- Output power: 500 W.
- Mainframe slot occupancy: 2.
- CV ripple vs. noise (rms): 1 mV.
Technical Specifications
| module type | High-performance autoranging |
|---|---|
| Output voltage | 60 V |
| Output current | 17 A |
| Output power | 500 W |
| Mainframe slot occupancy | 2 |
| CV ripple vs. noise (rms) | 1 mV |
| System interface | GPIB, LAN/LXI, and USB available through the mainframe |
Typical Applications
- Multi-channel power system integration
- Automated device validation
- Modular laboratory and production testing
Selection Notes
Evaluate whether the Keysight N6756A meets the application by comparing module type (High-performance autoranging) and output voltage (60 V). In addition, verify mainframe compatibility, module combinations, channel isolation, aggregate power, sequencing, and trigger or control requirements. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N6756A?
The Keysight N6756A is a high-performance auto-ranging DC power module intended for professional test and measurement applications.
What are key specifications of the N6756A?
Key verified specifications include module type: High-performance autoranging and output voltage: 60 V. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight N6756A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
