Description
Product Overview

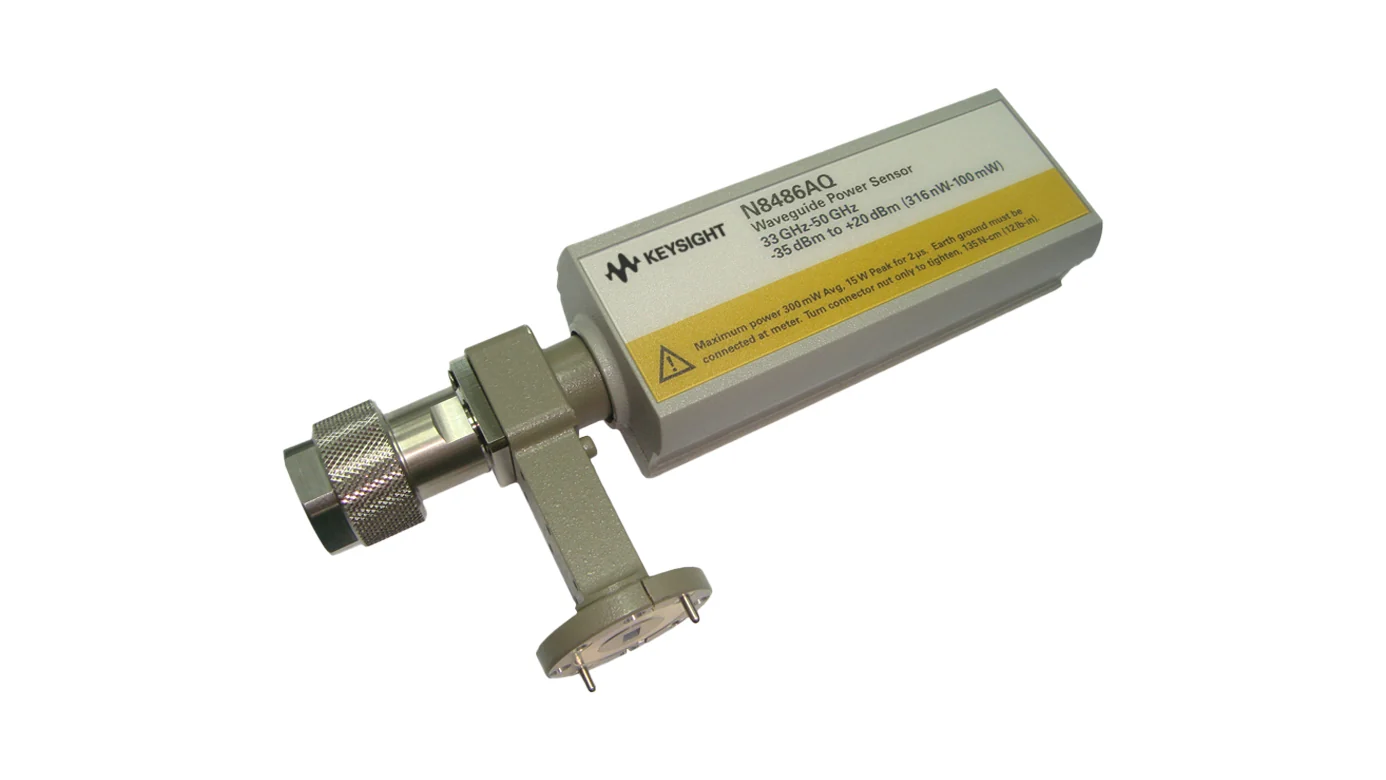

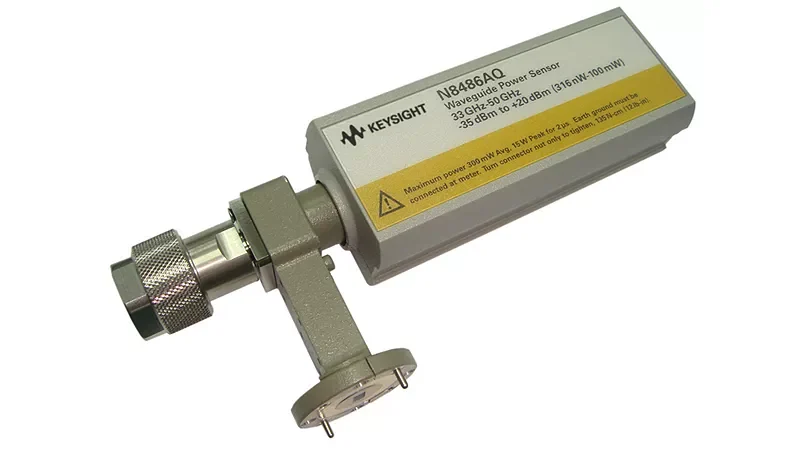

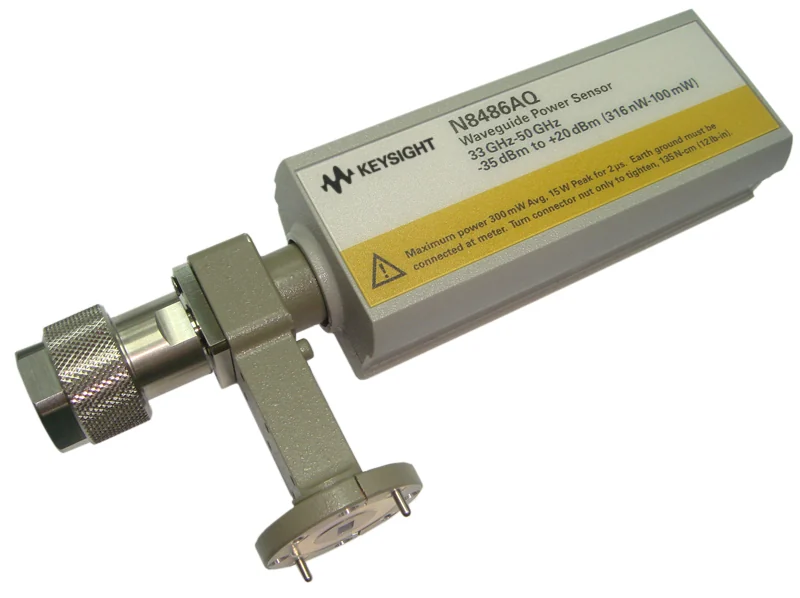

For RF and microwave power measurement, the Keysight N8486AQ combines frequency range: 33 to 50 GHz, average power range: −35 to +20 dBm, RF interface: WR-22 Waveguide Flange, sensing technology: Thermocouple/True Average Power, and standard calibration data: EEPROM autoload in a thermocouple average power sensor platform. It is part of the N8480 Series Thermocouple Power Sensors. It can also be evaluated for wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 33 to 50 GHz.
- Average power range: −35 to +20 dBm.
- RF interface: WR-22 Waveguide Flange.
- Sensing technology: Thermocouple/True Average Power.
- Standard calibration data: EEPROM autoload.
- Power linearity: <1% (model/condition related).
Technical Specifications
| frequency range | 33 to 50 GHz |
|---|---|
| average power range | −35 to +20 dBm |
| RF interface | WR-22 Waveguide Flange |
| Sensing technology | Thermocouple/True Average Power |
| Standard calibration data | EEPROM autoload |
| Power linearity | <1% (model/condition related) |
| Legacy system compatibility options | Option CFT (by model) |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
Start selection of the Keysight N8486AQ by checking the verified frequency range (33 to 50 GHz) and average power range (−35 to +20 dBm). Then confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N8486AQ?
The Keysight N8486AQ is a thermocouple average power sensor intended for professional test and measurement applications.
What are key specifications of the N8486AQ?
Key verified specifications include frequency range: 33 to 50 GHz and average power range: −35 to +20 dBm. Review the full table for model-specific details.
What information is needed to quote the N8486AQ?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
