Description
Product Overview

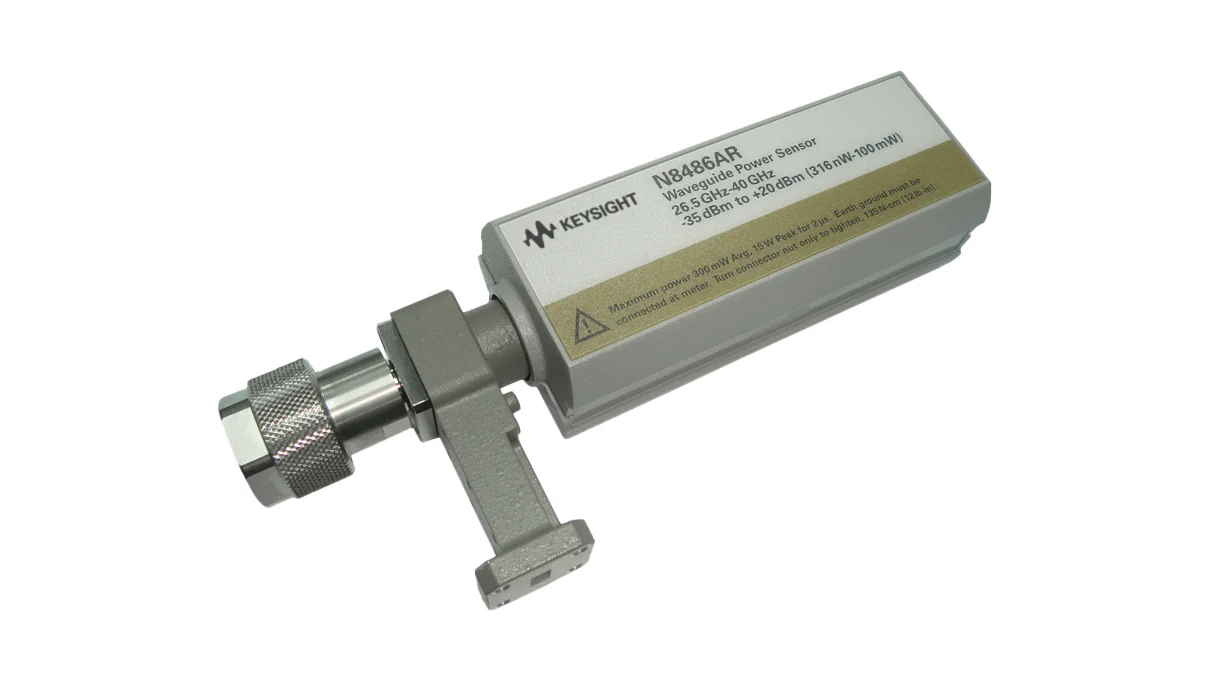

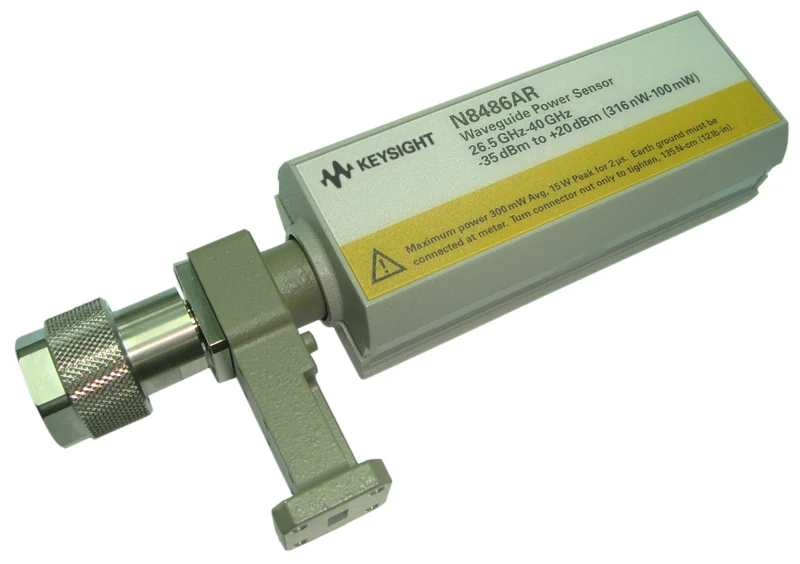

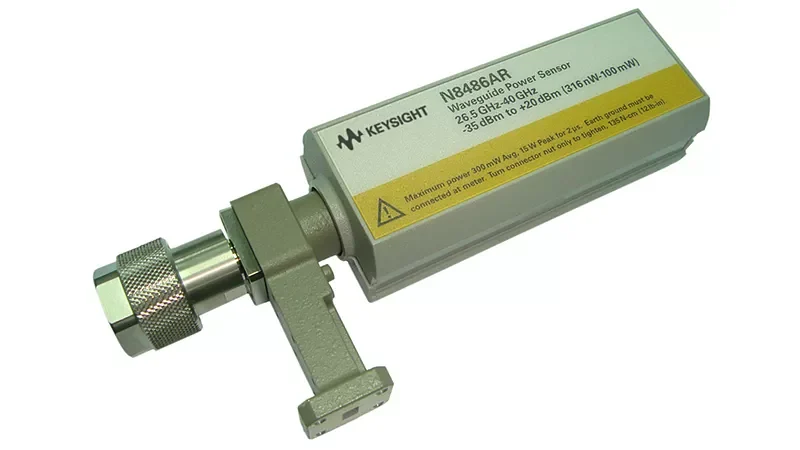

The Keysight N8486AR is a thermocouple average power sensor specified for RF and microwave power measurement. It is part of the N8480 Series Thermocouple Power Sensors. Verified model data includes frequency range: 26.5 to 40 GHz, average power range: −35 to +20 dBm, RF interface: WR-28 Waveguide Flange, sensing technology: Thermocouple/True Average Power, and standard calibration data: EEPROM autoload. The same capabilities support wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 26.5 to 40 GHz.
- Average power range: −35 to +20 dBm.
- RF interface: WR-28 Waveguide Flange.
- Sensing technology: Thermocouple/True Average Power.
- Standard calibration data: EEPROM autoload.
- Power linearity: <1% (model/condition related).
Technical Specifications
| frequency range | 26.5 to 40 GHz |
|---|---|
| average power range | −35 to +20 dBm |
| RF interface | WR-28 Waveguide Flange |
| Sensing technology | Thermocouple/True Average Power |
| Standard calibration data | EEPROM autoload |
| Power linearity | <1% (model/condition related) |
| Legacy system compatibility options | Option CFT (by model) |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
For the Keysight N8486AR, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Use the verified frequency range (26.5 to 40 GHz) and average power range (−35 to +20 dBm) as initial selection checks. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N8486AR?
The Keysight N8486AR is a thermocouple average power sensor intended for professional test and measurement applications.
What are key specifications of the N8486AR?
Key verified specifications include frequency range: 26.5 to 40 GHz and average power range: −35 to +20 dBm. Review the full table for model-specific details.
How can I request a quote for the Keysight N8486AR?
Send the required configuration, quantity, destination, and calibration or accessory requirements to Hoyu Instruments for a detailed quotation.
