Description
Product Overview

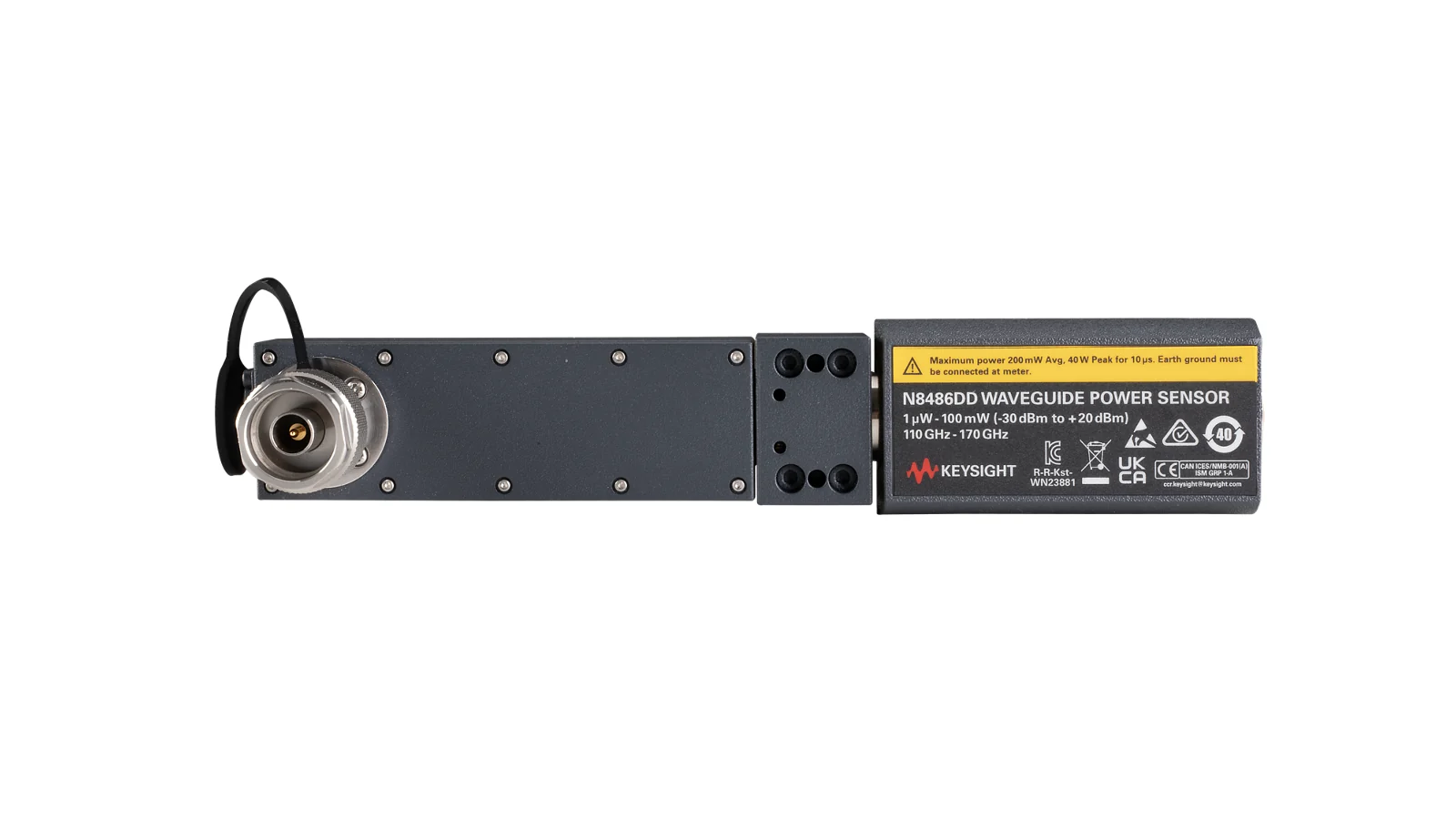

Keysight positions the N8486DD as a d-band waveguide power sensor for RF and microwave power measurement. It is part of the N8480 Series Thermocouple Power Sensors. Model-specific evidence confirms frequency range: 110 to 170 GHz, power range: Option 100: −30 to +20 dBm; Option 200: −52 to +10 dBm, interface: WR-6 Waveguide Flange, measurement type: average power, and sensing technology: Diode power detection, supporting engineering work such as wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 110 to 170 GHz.
- Power range: Option 100: −30 to +20 dBm; Option 200: −52 to +10 dBm.
- Interface: WR-6 Waveguide Flange.
- Measurement type: average power.
- Sensing technology: Diode power detection.
- Configuration instructions: Option 100 does not have built-in EEPROM and requires manual input of calibration factors; Option 200 has EEPROM and extends the low power range..
Technical Specifications
| frequency range | 110 to 170 GHz |
|---|---|
| Power range | Option 100: −30 to +20 dBm; Option 200: −52 to +10 dBm |
| interface | WR-6 Waveguide Flange |
| Measurement type | average power |
| Sensing technology | Diode power detection |
| Configuration instructions | Option 100 does not have built-in EEPROM and requires manual input of calibration factors; Option 200 has EEPROM and extends the low power range. |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
The first configuration checks for the Keysight N8486DD are frequency range (110 to 170 GHz) and power range (Option 100: −30 to +20 dBm; Option 200: −52 to +10 dBm). For a complete selection, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight N8486DD?
The Keysight N8486DD is a d-band waveguide power sensor intended for professional test and measurement applications.
What are key specifications of the N8486DD?
Key verified specifications include frequency range: 110 to 170 GHz and power range: Option 100: −30 to +20 dBm; Option 200: −52 to +10 dBm. Review the full table for model-specific details.
How should I specify the Keysight N8486DD for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
