Description
Product Overview

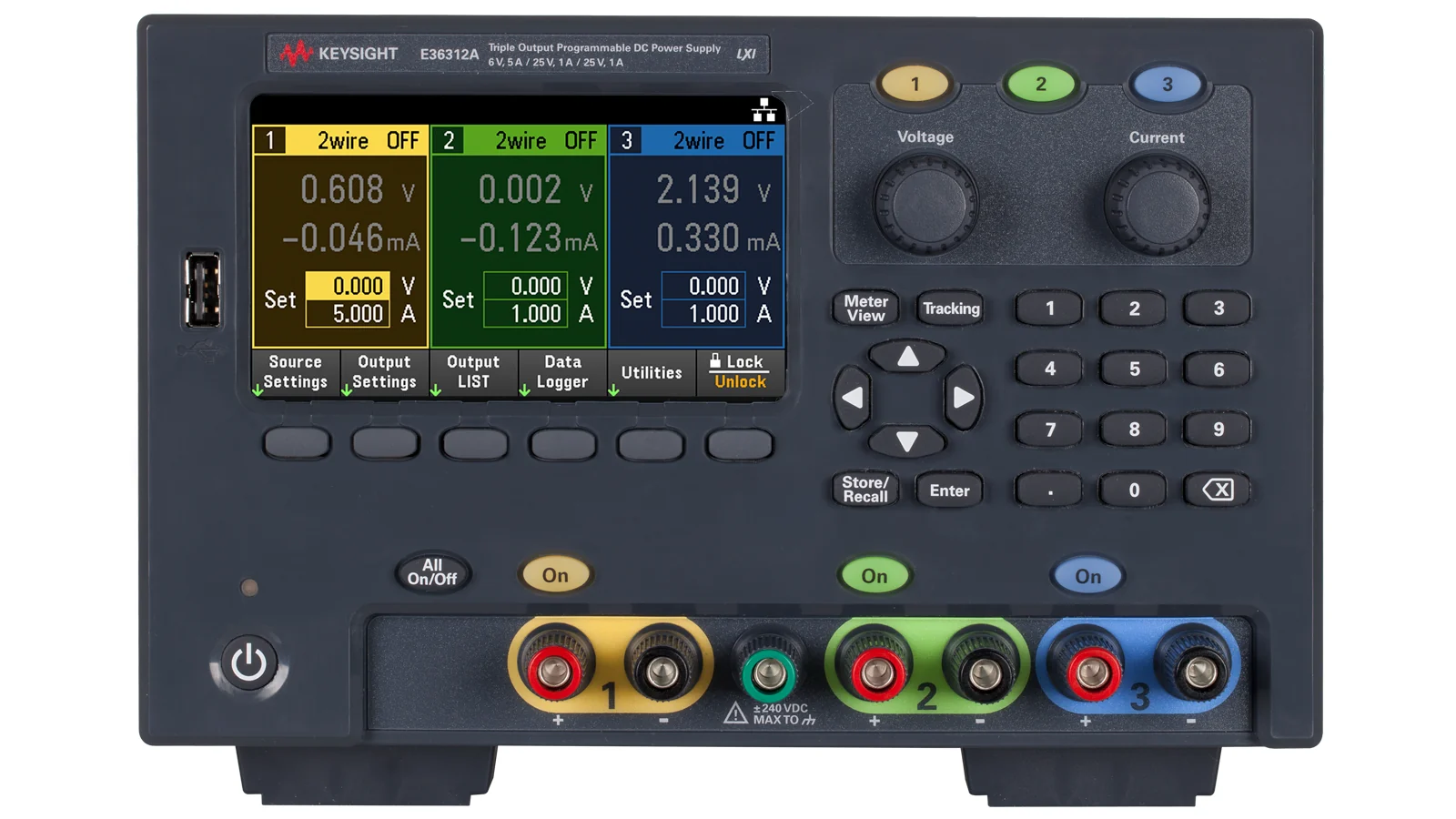

For laboratory circuit development, the Keysight E36312A combines output channel: 3, rated output: 6 V/5 A, 2 × 25 V/1 A; total power 80 W, channel combination: Channels 2/3 can be connected in series to 50 V or in parallel to 2 A, display: 4.3-inch color LCD, and remote interface: LAN, USB; GPIB option in a triple-output programmable DC power supply platform. It is part of the E36300 Series Triple-Output Bench DC Power Supplies. It can also be evaluated for component and device testing and bench and production power delivery. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Output channel: 3.
- Rated output: 6 V/5 A, 2 × 25 V/1 A; total power 80 W.
- Channel combination: Channels 2/3 can be connected in series to 50 V or in parallel to 2 A.
- Display: 4.3-inch color LCD.
- Remote interface: LAN, USB; GPIB option.
- Advanced features: Data logging, LIST, output timing and channel tracing.
Technical Specifications
| Output channel | 3 |
|---|---|
| Rated output | 6 V/5 A, 2 × 25 V/1 A; total power 80 W |
| Channel combination | Channels 2/3 can be connected in series to 50 V or in parallel to 2 A |
| Display | 4.3-inch color LCD |
| remote interface | LAN, USB; GPIB option |
| Advanced features | Data logging, LIST, output timing and channel tracing |
Typical Applications
- Laboratory circuit development
- Component and device testing
- Bench and production power delivery
Selection Notes
Start selection of the Keysight E36312A by checking the verified output channel (3) and rated output (6 V/5 A, 2 × 25 V/1 A; total power 80 W). Then confirm the required output voltage, current, power, channel count, transient response, remote sensing, and control interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E36312A?
The Keysight E36312A is a triple-output programmable DC power supply intended for professional test and measurement applications.
What are key specifications of the E36312A?
Key verified specifications include output channel: 3 and rated output: 6 V/5 A, 2 × 25 V/1 A; total power 80 W. Review the full table for model-specific details.
What information is needed to quote the E36312A?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
