Description
Product Overview

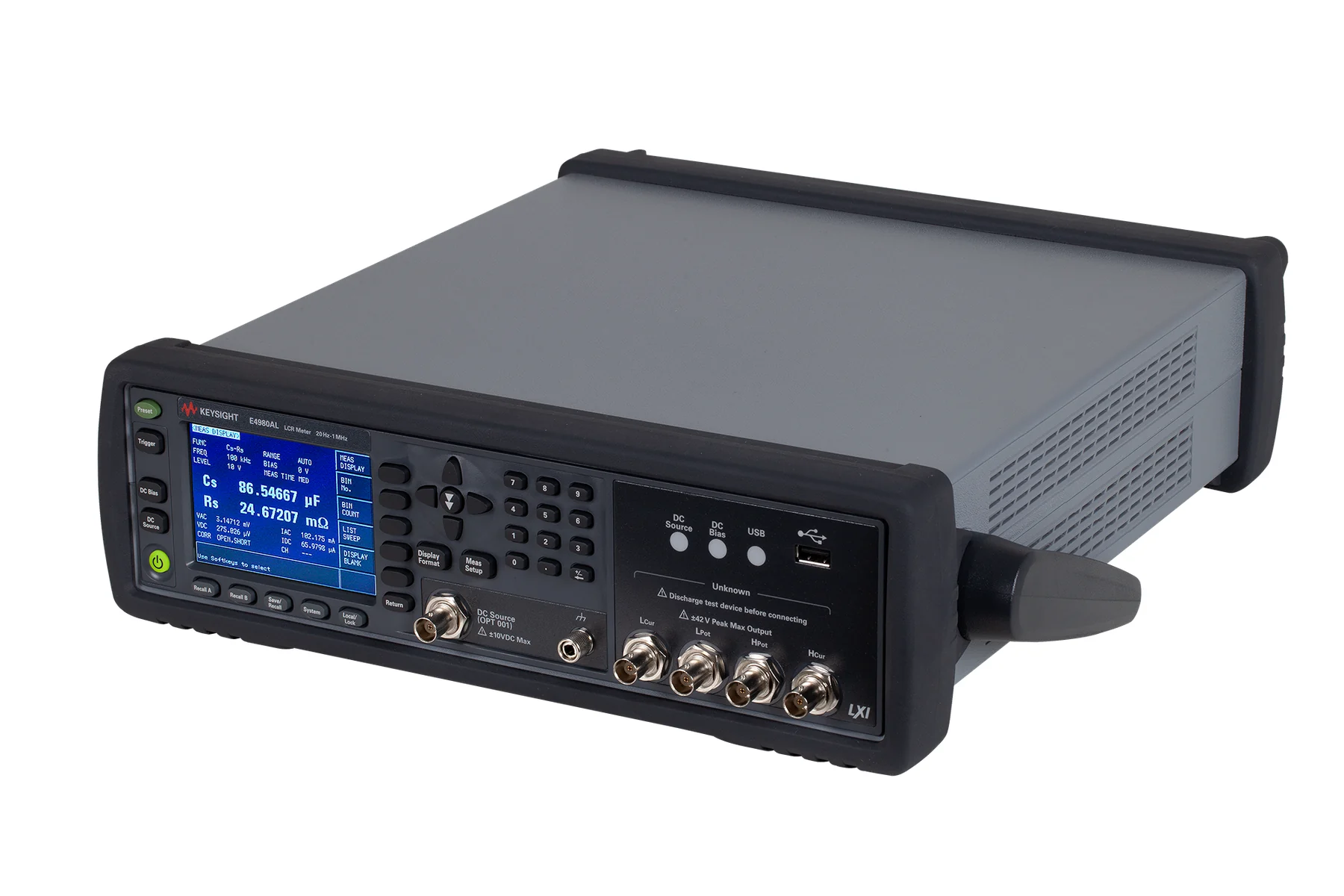

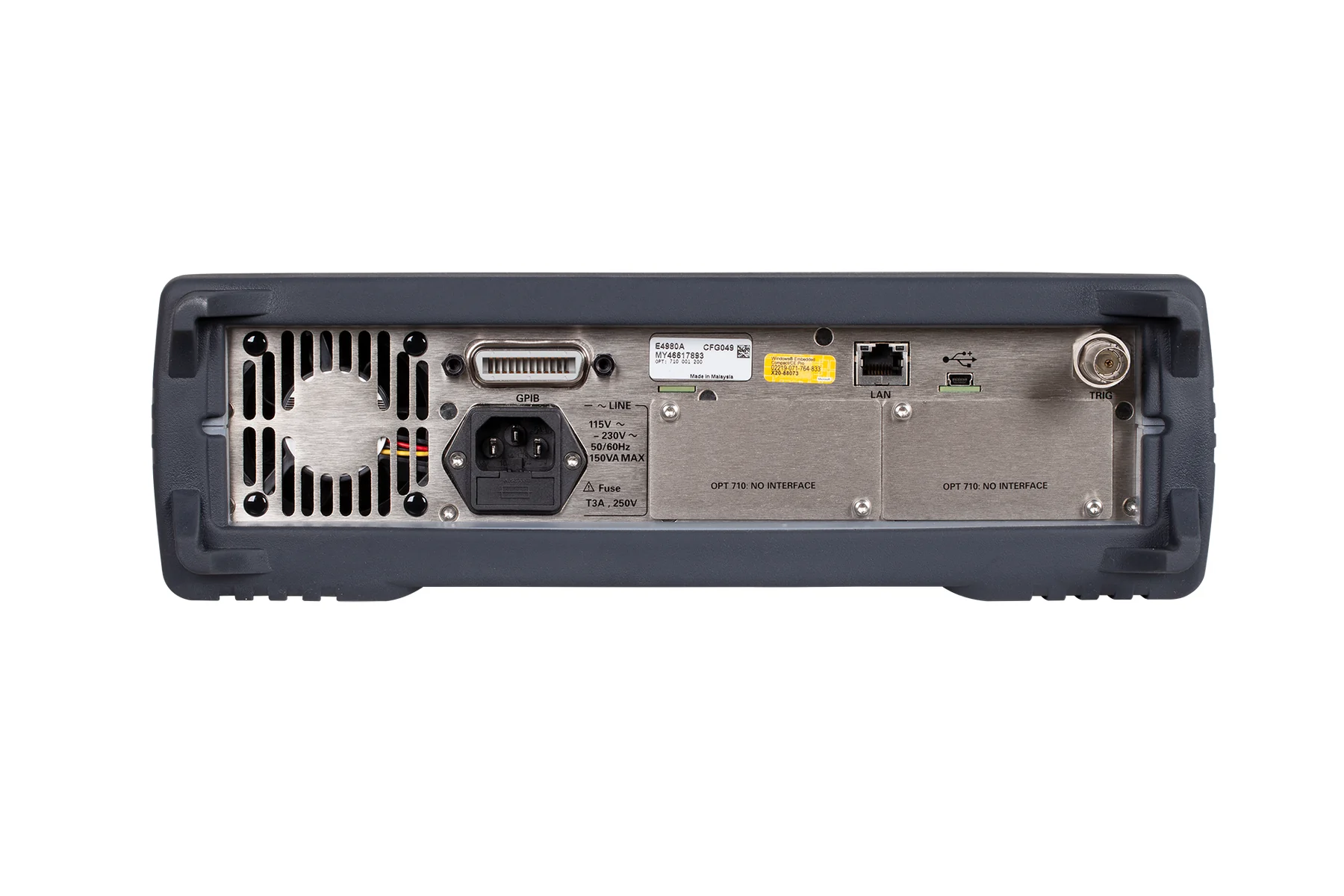

For component impedance characterization, the Keysight E4980AL combines test frequency: 20 Hz to 300 kHz / 500 kHz / 1 MHz (by option), basic accuracy: 0.05% basic impedance accuracy, measurement speed: 5.6 ms (SHORT mode), test signal/offset: 100 µV to 2 Vrms; 1 µA to 20 mA, and measuring range/function: 16 impedance parameters, supports DCR and 201 point list scan in an upgradeable precision LCR meter platform. It is part of the E4980A Precision LCR Meter Family. It can also be evaluated for materials and device research and production quality testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Test frequency: 20 Hz to 300 kHz / 500 kHz / 1 MHz (by option).
- Basic accuracy: 0.05% basic impedance accuracy.
- Measurement speed: 5.6 ms (SHORT mode).
- Test signal/offset: 100 µV to 2 Vrms; 1 µA to 20 mA.
- Measuring range/function: 16 impedance parameters, supports DCR and 201 point list scan.
- Communication and system interface: LAN, USB, GPIB.
Technical Specifications
| Test frequency | 20 Hz to 300 kHz / 500 kHz / 1 MHz (by option) |
|---|---|
| basic accuracy | 0.05% basic impedance accuracy |
| Measurement speed | 5.6 ms (SHORT mode) |
| Test signal/offset | 100 µV to 2 Vrms; 1 µA to 20 mA |
| Measuring range/function | 16 impedance parameters, supports DCR and 201 point list scan |
| Communication and system interface | LAN, USB, GPIB |
| product status | Discontinued |
Typical Applications
- Component impedance characterization
- Materials and device research
- Production quality testing
Selection Notes
Start selection of the Keysight E4980AL by checking the verified test frequency (20 Hz to 300 kHz / 500 kHz / 1 MHz (by option)) and basic accuracy (0.05% basic impedance accuracy). Then confirm the frequency range, test signal level, measurement accuracy, bias capability, fixture compatibility, and automation interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E4980AL?
The Keysight E4980AL is an upgradeable precision LCR meter intended for professional test and measurement applications.
What are key specifications of the E4980AL?
Key verified specifications include test frequency: 20 Hz to 300 kHz / 500 kHz / 1 MHz (by option) and basic accuracy: 0.05% basic impedance accuracy. Review the full table for model-specific details.
What information is needed to quote the E4980AL?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
