Description
Product Overview

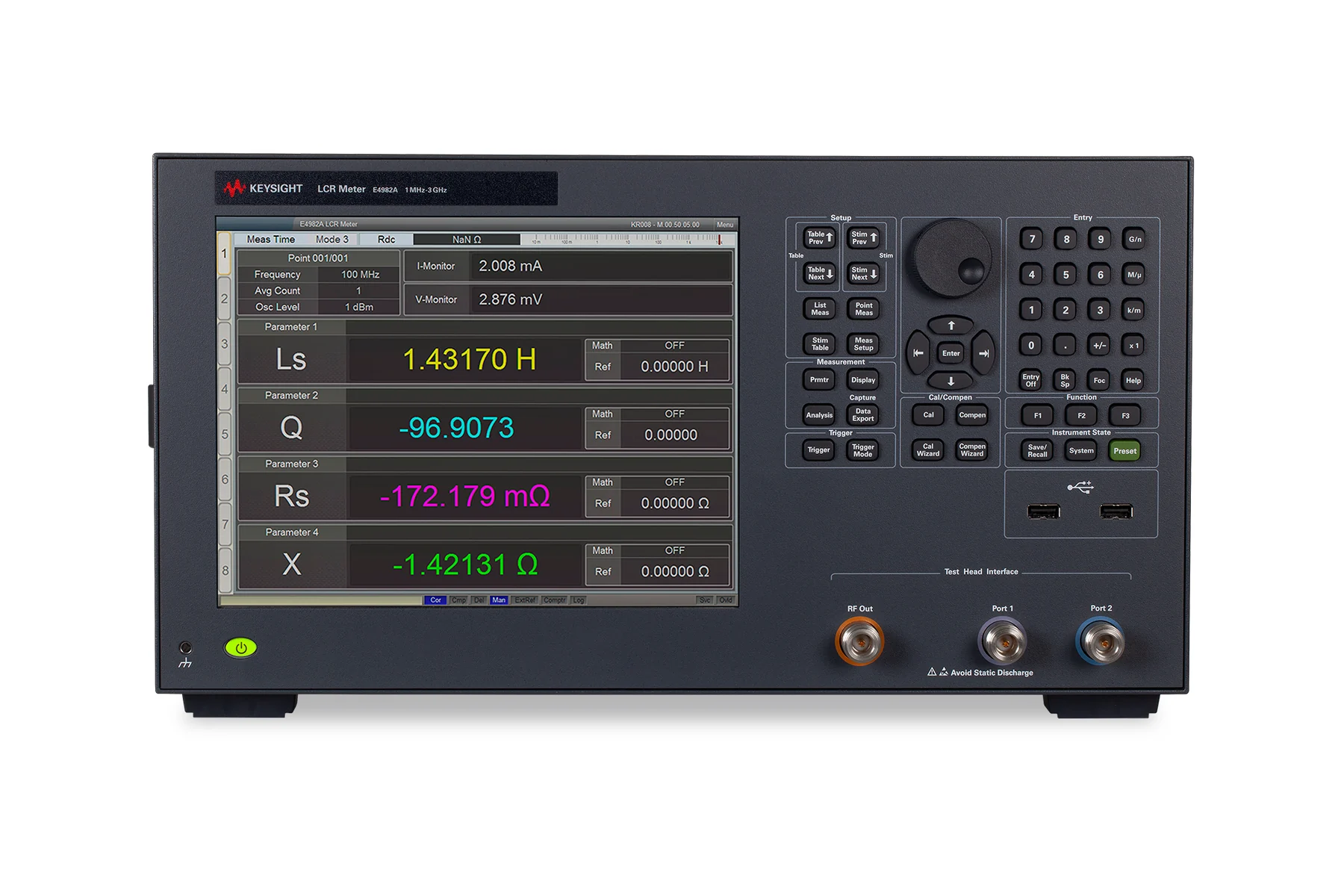

The verified specification set for the Keysight E4982A covers test frequency: 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz (upgradeable by option), basic accuracy: 0.8% basic accuracy, measurement speed: 0.9 ms / 2.1 ms / 3.7 ms (three modes), test signal/offset: High frequency test head; compatible with 4287A test system migration, and measuring range/function: 140 mΩ to 4.8 kΩ (10% accuracy range); 11 parameters. As an LCR meter, it is suited to component impedance characterization, with related use in materials and device research and production quality testing. It is part of the E4980B and E4982A Benchtop LCR Meters. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Test frequency: 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz (upgradeable by option).
- Basic accuracy: 0.8% basic accuracy.
- Measurement speed: 0.9 ms / 2.1 ms / 3.7 ms (three modes).
- Test signal/offset: High frequency test head; compatible with 4287A test system migration.
- Measuring range/function: 140 mΩ to 4.8 kΩ (10% accuracy range); 11 parameters.
- Communication and system interface: LAN, USB, GPIB, Handler.
Technical Specifications
| Test frequency | 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz (upgradeable by option) |
|---|---|
| basic accuracy | 0.8% basic accuracy |
| Measurement speed | 0.9 ms / 2.1 ms / 3.7 ms (three modes) |
| Test signal/offset | High frequency test head; compatible with 4287A test system migration |
| Measuring range/function | 140 mΩ to 4.8 kΩ (10% accuracy range); 11 parameters |
| Communication and system interface | LAN, USB, GPIB, Handler |
| product status | Current product |
Typical Applications
- Component impedance characterization
- Materials and device research
- Production quality testing
Selection Notes
Evaluate whether the Keysight E4982A meets the application by comparing test frequency (1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz (upgradeable by option)) and basic accuracy (0.8% basic accuracy). In addition, confirm the frequency range, test signal level, measurement accuracy, bias capability, fixture compatibility, and automation interfaces. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight E4982A?
The Keysight E4982A is an LCR meter intended for professional test and measurement applications.
What are key specifications of the E4982A?
Key verified specifications include test frequency: 1 MHz to 300 MHz / 500 MHz / 1 GHz / 3 GHz (upgradeable by option) and basic accuracy: 0.8% basic accuracy. Review the full table for model-specific details.
Can Hoyu Instruments quote a configured Keysight E4982A?
Yes. Supply the required options, interfaces, accessories, calibration scope, quantity, and destination so Hoyu Instruments can prepare a configuration-specific quotation.
