Description
Product Overview

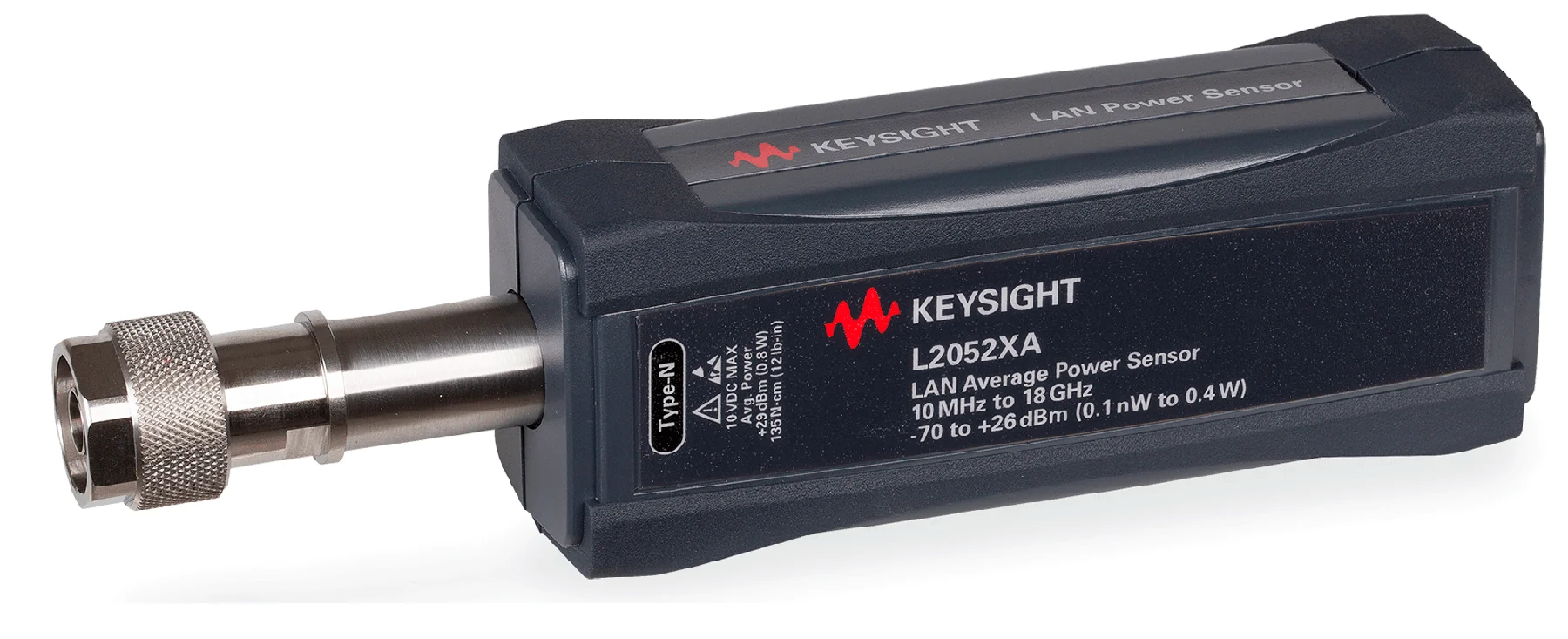

The Keysight L2052XA is an LAN wide dynamic range average power sensor specified for RF and microwave power measurement. It is part of the L2050 X-Series LAN Wide-Dynamic-Range Power Sensors. Verified model data includes frequency range: 10 MHz to 18 GHz, average mode power range: −70 to +26 dBm, RF connector: Type-N male connector, connection method: LAN, and measurement type: Wide dynamic range average power. The same capabilities support wireless device characterization and calibration and production testing. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Frequency range: 10 MHz to 18 GHz.
- Average mode power range: −70 to +26 dBm.
- RF connector: Type-N male connector.
- Connection method: LAN.
- Measurement type: Wide dynamic range average power.
- Continuous sampling rate: 20 MSa/s.
Technical Specifications
| frequency range | 10 MHz to 18 GHz |
|---|---|
| Average mode power range | −70 to +26 dBm |
| RF connector | Type-N male connector |
| Connection method | LAN |
| Measurement type | Wide dynamic range average power |
| continuous sampling rate | 20 MSa/s |
| Zeroing and Calibration | Built-in |
Typical Applications
- RF and microwave power measurement
- Wireless device characterization
- Calibration and production testing
Selection Notes
For the Keysight L2052XA, confirm frequency and power range, sensor or meter compatibility, connector type, measurement speed, and calibration coverage. Use the verified frequency range (10 MHz to 18 GHz) and average mode power range (−70 to +26 dBm) as initial selection checks. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight L2052XA?
The Keysight L2052XA is an LAN wide dynamic range average power sensor intended for professional test and measurement applications.
What are key specifications of the L2052XA?
Key verified specifications include frequency range: 10 MHz to 18 GHz and average mode power range: −70 to +26 dBm. Review the full table for model-specific details.
How can I request a quote for the Keysight L2052XA?
Send the required configuration, quantity, destination, and calibration or accessory requirements to Hoyu Instruments for a detailed quotation.
