Description
Product Overview

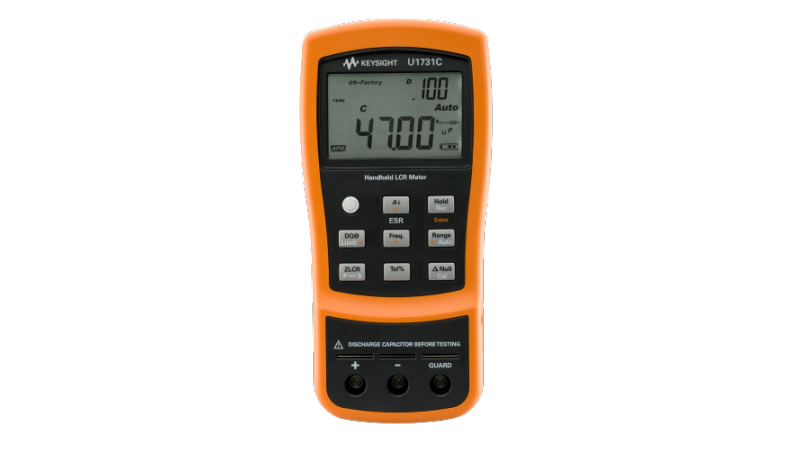

For passive component measurement, the Keysight U1731C combines instrument type: Handheld LCR meter, display resolution: 20,000 counts, capacity range: 200 pF to 20 mF, test frequency: 100 Hz / 120 Hz / 1 kHz, and basic accuracy: 0.2% + 3 counts in a handheld LCR meter platform. It can also be evaluated for impedance and materials testing and incoming inspection and production QA. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Instrument type: Handheld LCR meter.
- Display resolution: 20,000 counts.
- Capacity range: 200 pF to 20 mF.
- Test frequency: 100 Hz / 120 Hz / 1 kHz.
- Basic accuracy: 0.2% + 3 counts.
- Model features: L/C/R, Z, ESR, D/Q/θ and automatic component recognition.
Technical Specifications
| Instrument type | Handheld LCR meter |
|---|---|
| display resolution | 20,000 counts |
| Capacity range | 200 pF to 20 mF |
| Test frequency | 100 Hz / 120 Hz / 1 kHz |
| Basic accuracy | 0.2% + 3 counts |
| Model features | L/C/R, Z, ESR, D/Q/θ and automatic component recognition |
Typical Applications
- Passive component measurement
- Impedance and materials testing
- Incoming inspection and production QA
Selection Notes
Start selection of the Keysight U1731C by checking the verified instrument type (Handheld LCR meter) and display resolution (20,000 counts). Then confirm test frequency, impedance range, accuracy conditions, test signal, fixture compatibility, and handler or automation needs. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight U1731C?
The Keysight U1731C is a handheld LCR meter intended for professional test and measurement applications.
What are key specifications of the U1731C?
Key verified specifications include instrument type: Handheld LCR meter and display resolution: 20,000 counts. Review the full table for model-specific details.
What information is needed to quote the U1731C?
Provide the intended application, configuration or options, quantity, delivery country, and any calibration or accessory requirements so the quotation can be checked accurately.
