Description
Product Overview

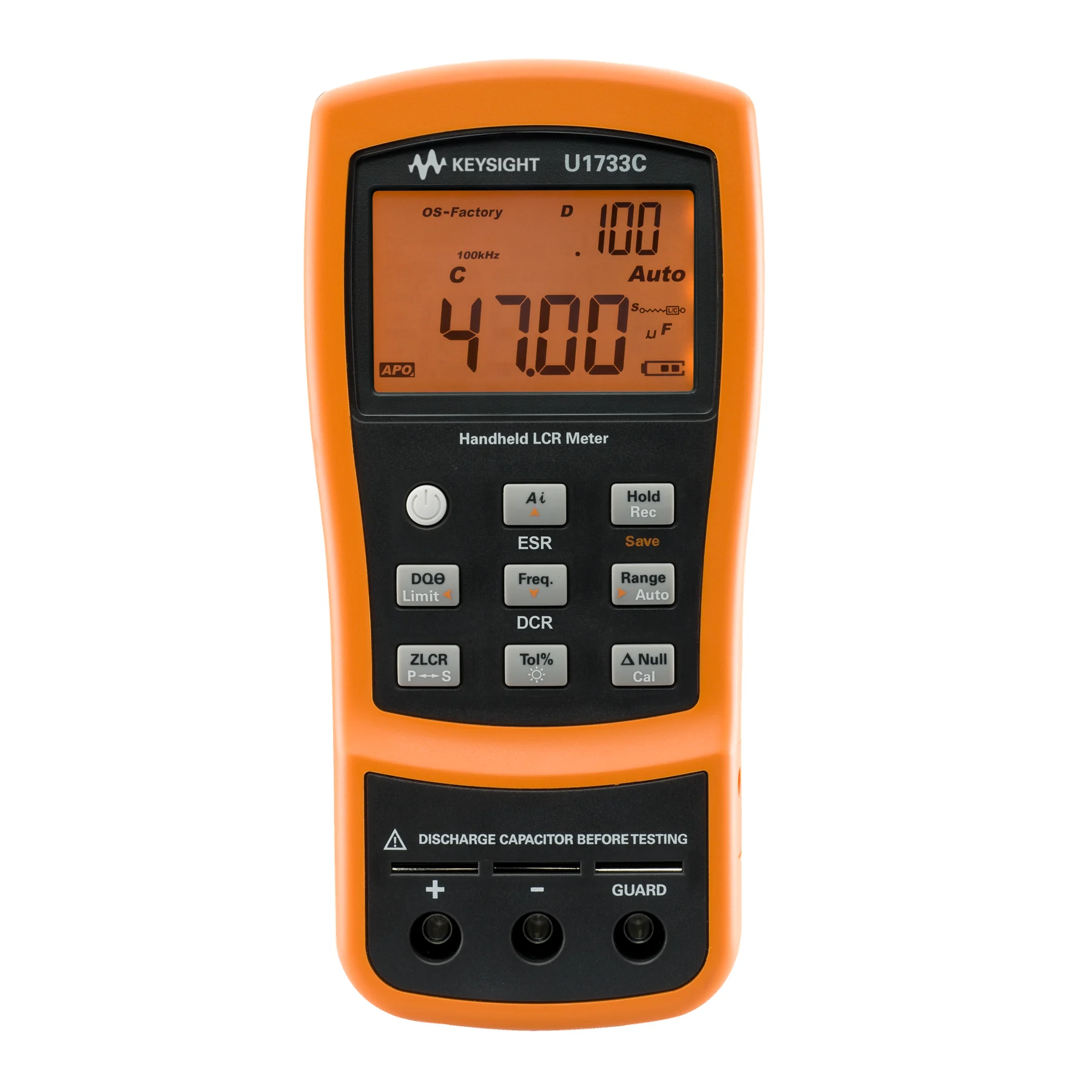

Keysight positions the U1733C as a handheld LCR meter for passive component measurement. It is part of the U1700 Series Handheld Capacitance and LCR Meters. Model-specific evidence confirms instrument type: Handheld LCR meter, display resolution: 20,000 counts, capacity range: 20 pF to 20 mF, test frequency: 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz, and basic accuracy: 0.2% + 3 counts, supporting engineering work such as impedance and materials testing and incoming inspection and production QA. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Instrument type: Handheld LCR meter.
- Display resolution: 20,000 counts.
- Capacity range: 20 pF to 20 mF.
- Test frequency: 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz.
- Basic accuracy: 0.2% + 3 counts.
- Model features: Added 100 kHz and DCR measurements.
Technical Specifications
| Instrument type | Handheld LCR meter |
|---|---|
| display resolution | 20,000 counts |
| Capacity range | 20 pF to 20 mF |
| Test frequency | 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz |
| Basic accuracy | 0.2% + 3 counts |
| Model features | Added 100 kHz and DCR measurements |
Typical Applications
- Passive component measurement
- Impedance and materials testing
- Incoming inspection and production QA
Selection Notes
The first configuration checks for the Keysight U1733C are instrument type (Handheld LCR meter) and display resolution (20,000 counts). For a complete selection, confirm test frequency, impedance range, accuracy conditions, test signal, fixture compatibility, and handler or automation needs. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight U1733C?
The Keysight U1733C is a handheld LCR meter intended for professional test and measurement applications.
What are key specifications of the U1733C?
Key verified specifications include instrument type: Handheld LCR meter and display resolution: 20,000 counts. Review the full table for model-specific details.
How should I specify the Keysight U1733C for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
