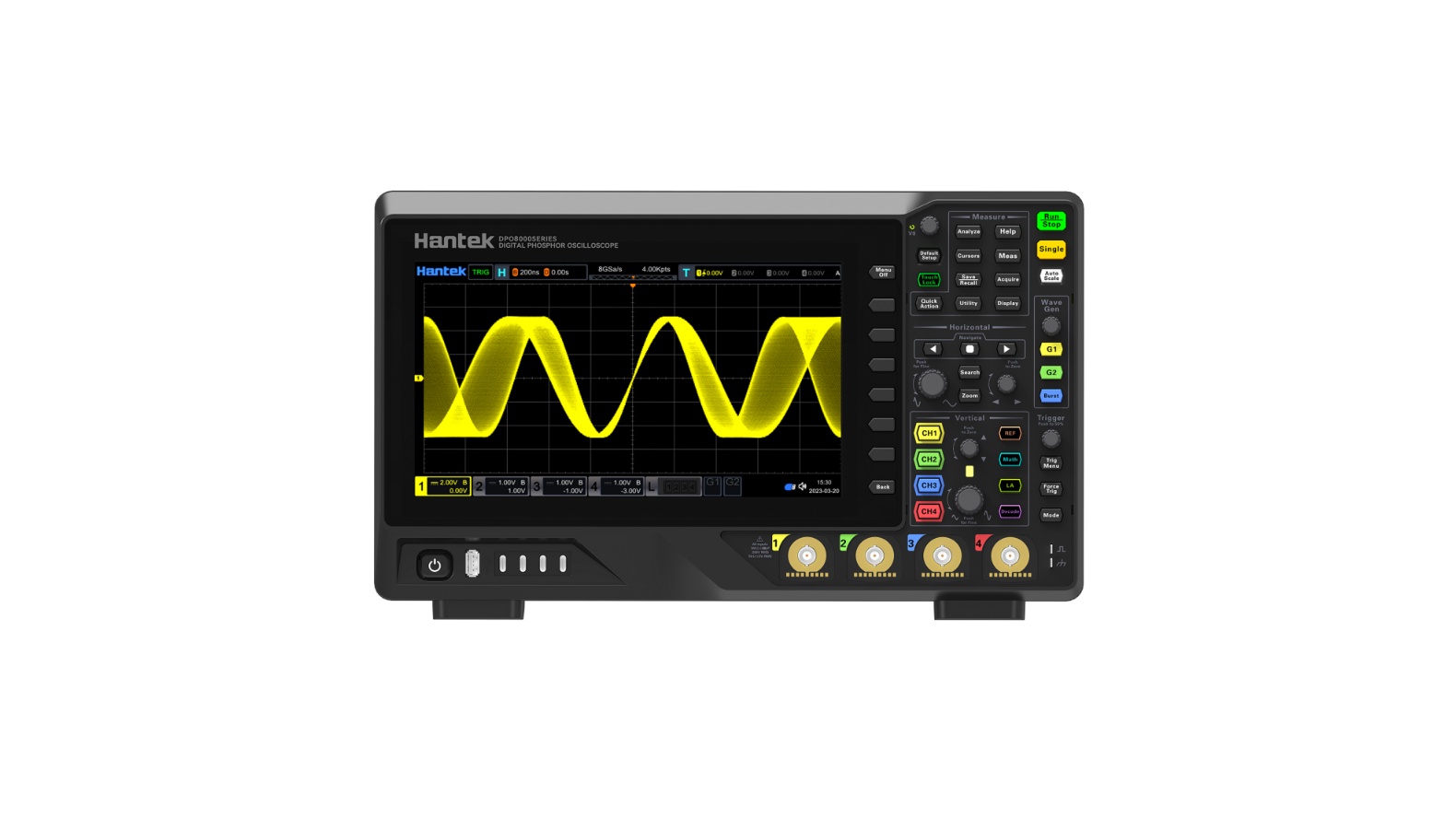

Hantek DPO8000 Series Digital Oscilloscope

The Hantek DPO8000 Series is built for engineers and technical teams who need strong waveform visibility, deep memory, and integrated test capability in one bench instrument. According to Hantek’s official product page and datasheet, the series combines up to eight functions in one platform: oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, frequency meter and accumulator, protocol analyzer, and protocol generator. This integrated approach helps reduce bench clutter, shorten setup time, and simplify workflow for R&D, validation, maintenance, and production test environments.

The official series lineup spans multiple bandwidth options, from 200 MHz to 1 GHz, while maintaining 4 analog channels, up to 8 GSa/s real-time sampling, and up to 2 Gpts memory depth. Hantek also specifies a waveform capture rate up to 600,000 wfms/s, helping users detect intermittent events that could be missed on slower instruments. For teams working on mixed-signal systems, the E-series models add 16 digital channels and a dual-channel 200 MHz waveform generator, which can reduce the need for separate bench instruments.

The DPO8000 Series is also positioned as a professional-grade measurement platform with serial bus triggering and decoding, automatic measurements, search and navigation tools, histogram, power analysis, Bode plot capability, and waveform recording/playback. The official English and Chinese Hantek materials consistently present the series as a solution for users who require both high-speed acquisition and broader debug functionality in a single platform.

Key Features

One of the biggest strengths of the DPO8000 Series is its ability to balance performance and integration. Hantek states that the series provides up to 8 GSa/s sampling, 2 Gpts memory, and hardware waveform recording/playback up to 2 million frames, which is especially valuable for capturing rare glitches, burst behavior, or timing anomalies in long observation windows. The datasheet also notes peak-detect capability for very narrow glitches, making the platform suitable for high-speed signal analysis and fault hunting.

The interface is designed for efficient daily use. Official materials specify a 10.1-inch multi-touch capacitive display with 256-level waveform grayscale and color temperature display, supporting clearer visual identification of activity density and abnormal signal behavior. Hantek also highlights 51 automatic waveform measurements, full-memory hardware measurement support, and built-in tools such as search, navigate, histogram, power analysis, and Bode plot to support deeper investigation without moving data to another environment too early in the workflow.

For embedded and communication work, the DPO8000 Series includes serial trigger and decode support for protocols such as UART/RS232, I2C, SPI, LIN, and CAN. Hantek also lists protocol generation capability for several of these buses, which can be useful when simulating or validating embedded interfaces. In addition, E-series models include dual 200 MHz waveform generator outputs, with official materials stating 1 GSa/s waveform generator sampling, 16-bit vertical resolution for the generator, and support for standard and arbitrary waveforms.

From a connectivity standpoint, Hantek lists USB Host, USB Device, and LAN as standard, with HDMI and serial port listed as optional depending on configuration. This is helpful for remote control, data export, and bench integration. Official documentation also states that the DPO series meets China’s national industry standards and has passed CE certification.

Applications

The Hantek DPO8000 Series is suitable for a broad range of professional measurement scenarios. In electronics R&D, the combination of four analog channels, optional digital channels, deep memory, and fast waveform capture helps engineers analyze power rails, clocks, control logic, switching edges, and serial communications more efficiently. The integrated waveform generator is particularly useful for stimulus-response testing and bench validation on mixed-signal designs.

In embedded system debugging, the series supports common serial bus protocols and provides trigger/decode tools that can accelerate root-cause analysis when timing or data integrity issues appear. The large screen, touch interface, and search/navigation tools are helpful when tracing longer captures or comparing signal behaviors across events. For power electronics and industrial control, the power analysis tools, deep memory, and waveform playback can support troubleshooting in inverter drives, converters, control boards, and motor systems.

The DPO8000 Series is also relevant for education, maintenance labs, production verification, and procurement-led standardization, especially when teams want a single platform that reduces the number of separate bench instruments they need to purchase, train on, and maintain. This all-in-one positioning is a recurring theme across official and competitor-facing pages, so it should be reflected clearly in product-page messaging.

Technical Specifications

Package Contents

Typical package contents should be verified against the exact SKU and seller bundle before publishing. A safe template is:

• Hantek DPO8000 Series oscilloscope main unit

• Standard passive probes

• Power cord

• USB cable

• Quick start guide / user documentation

• Calibration certificate or compliance documentation if supplied

• Optional accessories depending on configuration, such as logic analyzer accessories or waveform generator-enabled variant support

Do not promise exact included accessories unless you confirm the exact package for your stocked model. Official product pages include accessories and downloads sections, but bundle contents can vary by seller and model configuration.

Call to Action

Upgrade your bench with the Hantek DPO8000 Series if your team needs faster waveform insight, deeper capture memory, and broader mixed-signal capability in one instrument. Contact us for the correct model recommendation, current availability, and a quotation tailored to your bandwidth, protocol, and accessory requirements.

---

【FAQ】

Q1: What is the maximum bandwidth of the Hantek DPO8000 Series?
A1: The DPO8000 Series offers models ranging from 200 MHz up to 1 GHz, depending on the exact SKU.

Q2: Does the Hantek DPO8000 support serial bus decoding?
A2: Yes. Official Hantek materials list support for UART/RS232, I2C, SPI, LIN, and CAN triggering and decoding.

Q3: Are logic analyzer and waveform generator functions included?
A3: They are included on E-series models, which officially list 16 digital channels and a 2-channel 200 MHz waveform generator.

Q4: What is the maximum sampling rate and memory depth?
A4: The official specification lists up to 8 GSa/s real-time sampling and up to 2 Gpts memory depth.

Q5: Is the Hantek DPO8000 suitable for mixed-signal debugging?
A5: Yes. With four analog channels, optional 16 digital channels on E-series models, serial decode support, and integrated analysis tools, it is well suited to mixed-signal and embedded development workflows.
