Description
Product Overview

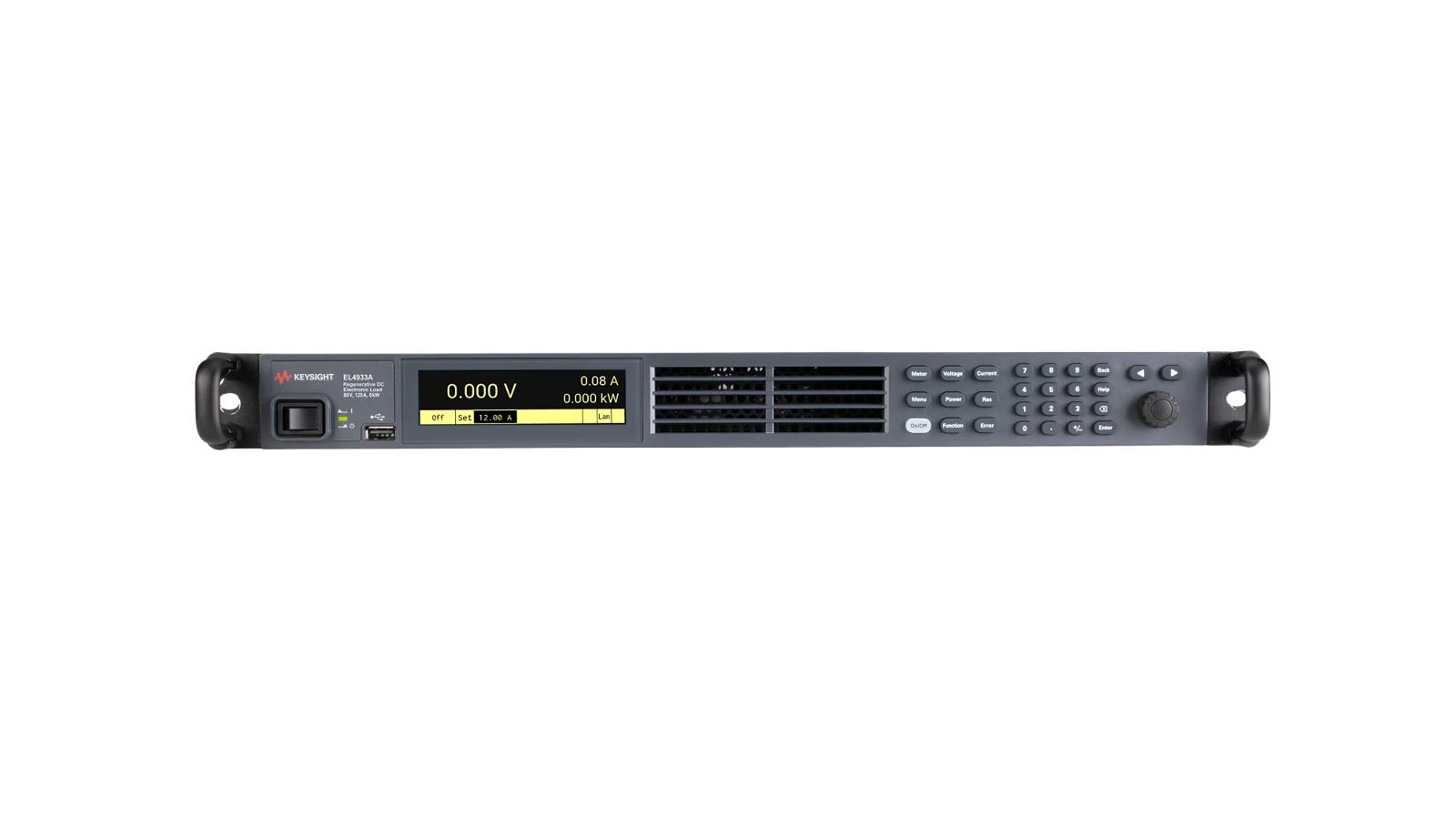

Keysight positions the EL4923A as a regenerative DC electronic load for power supply and converter testing. It is part of the EL4900 Series Regenerative DC Electronic Loads. Model-specific evidence confirms input channel: 1, maximum input voltage: 80 V, maximum input current: 80 A, maximum absorbed power: 4 kW, and form factor: 1U, supporting engineering work such as battery and energy storage evaluation and automated power test systems. Exact options, interfaces, accessories, calibration scope, and regional availability depend on the ordered configuration and should be confirmed before purchase.
Key Features
- Input channel: 1.
- Maximum input voltage: 80 V.
- Maximum input current: 80 A.
- Maximum absorbed power: 4 kW.
- Form factor: 1U.
- Load mode: CC, CV, CR, CP, etc..
Technical Specifications
| Input channel | 1 |
|---|---|
| Maximum input voltage | 80 V |
| Maximum input current | 80 A |
| Maximum absorbed power | 4 kW |
| Form factor | 1U |
| load mode | CC, CV, CR, CP, etc. |
| energy processing | Feedback to the AC grid |
Typical Applications
- Power supply and converter testing
- Battery and energy storage evaluation
- Automated power test systems
Selection Notes
The first configuration checks for the Keysight EL4923A are input channel (1) and maximum input voltage (80 V). For a complete selection, match the voltage, current and power envelope, operating modes, transient capability, channel configuration, and protection limits. Confirm regional availability, calibration scope, included items, and delivery requirements before ordering.
Frequently Asked Questions
What is the Keysight EL4923A?
The Keysight EL4923A is a regenerative DC electronic load intended for professional test and measurement applications.
What are key specifications of the EL4923A?
Key verified specifications include input channel: 1 and maximum input voltage: 80 V. Review the full table for model-specific details.
How should I specify the Keysight EL4923A for quotation?
State the measurement requirement, selected options, quantity, destination, and calibration or accessory needs. Hoyu Instruments will use those details to confirm the configuration before quoting.
